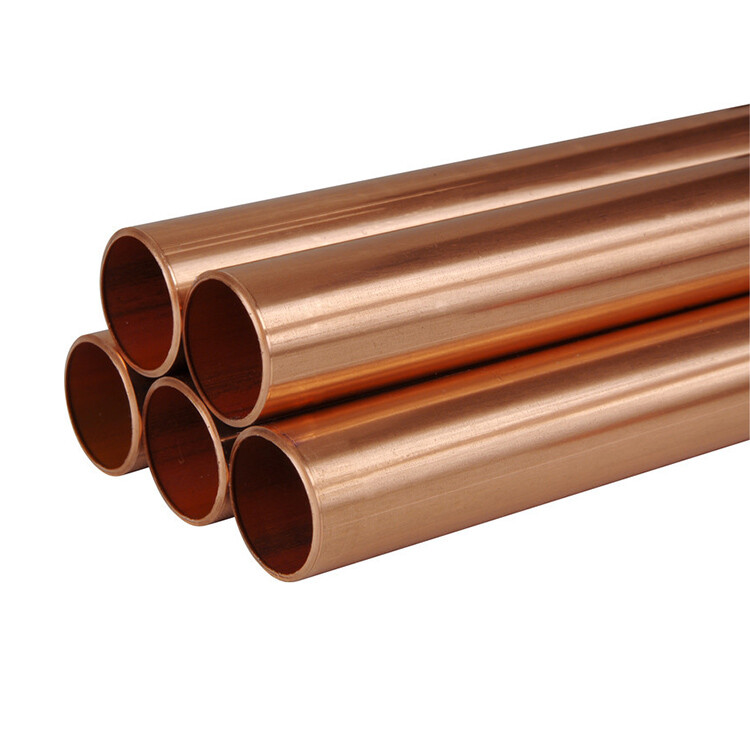

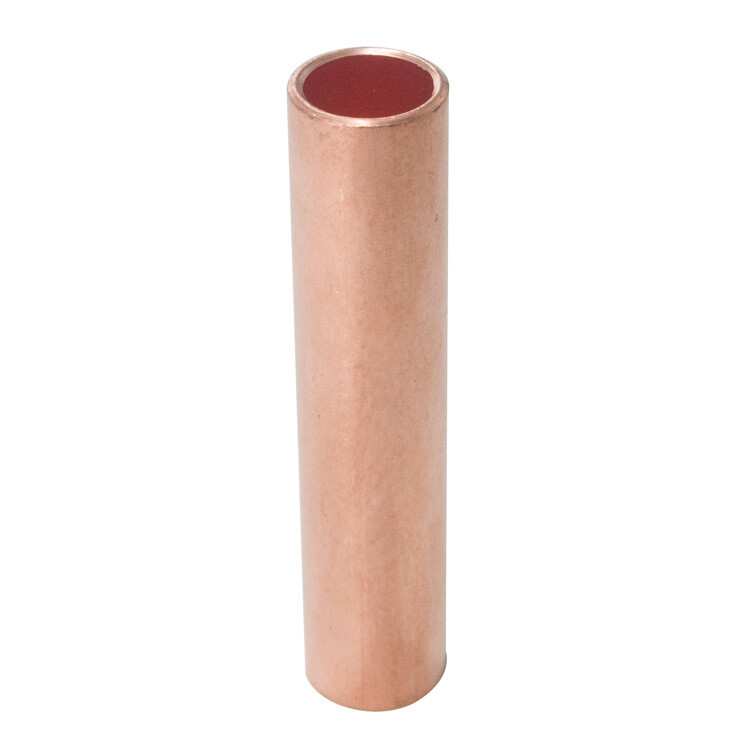

Pure Copper Pipe T1
Material: T1,TU1 TU2,TP1 TP2,Cu ETP,C110 C101
C11000,C10100,C12000
Delivery time:Usually 3-7 days, or upon negotiation
Competitive price and quality from our own factory
Terms of price: EXW, FOB, CFR, CIF
Payment Term:TT,L/C,etc
Certificates: SGS, MTC, ISO9001, CE, SGS

If you have any questions, please feel free to contact us.

Leave A Message

PRODUCT  INTRODUCTION


Product Introduction


Pure copper is a rose-red metal, and it turns purple after a copper oxide film is formed on the surface, so industrial pure copper is often called red copper or electrolytic copper. The density is 8-9g/cm3 and the melting point is 1083°C. Pure copper has good electrical conductivity and is widely used in the manufacture of wires, cables, brushes, etc.; it has good thermal conductivity and is often used to manufacture magnetic instruments and meters that must be protected from magnetic interference, such as compasses, aviation instruments, etc.; excellent plasticity, easy to heat Pressed and cold pressed, it can be made into copper materials such as pipes, rods, wires, strips, strips, plates, foils, etc.



Chemical Typical



C10100 99.99 Min 0.0005 Max 0.0005 Max C10200 99.95 Min 0.0001 Max 0.0003 Max


C10400 99.95 minutes 0.0001 0.027 minutes maximum


C10500 99.95 minutes 0.0001 0.034 minutes maximum


C10700 99.95 minutes 0.0001 0.085 minutes maximum


C11000 99.90 minutes


C12000 99.90 minutes 0.004-0.012


C12100 99.90 minutes 0.014 0.004-0.012


C15000 Balance* 0.10-0.20 Zr C15500 99.75 min 0.027-0.10 0.400-0.080 0.08-0.13 Mg



Description



Item NameCopper  Pipe
StandardGB,  ASTM, CDA, BS, DIN, JIS
Material

C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,

C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,

C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,

C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,

C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200,

T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,etc

specificationsOD:3-200mm,TH:0.1-20mm
ShapeRound, square, rectangular,etc
Length3m, 5.8m, 6m, 11.8m,12m, or as required
Price  TermFOB, CIF, CFR, etc
PackageWooden pallet.
Woven bag with bundle in points
Delivery  Time3-  days, According to order's quantity
ApplicationCopper pipe is the first choice of residential water pipes, heating, cooling pipes in stalled.




National Copper Grades



CNGEREURINTUSAJPN
GBDINENISOUNSJIS
TU2OF-Cu2.0040Cu-OFECW009ACu-OFC10100CJ0ll
-SE-Cu2.0070Cu-HCPCW021ACl0300
-SE-Cu2.0070Cu-PHCCW020A-Cl0300-
T2E-Cu582.0065Cu-ETPCW004ACu-ETPC11000CH00
TP2SF-Cu2.0090Cu-DHPCW024ACu-DHPCl  2200Cl  220
SF-Cu2.0090Cu-DHPCW024ACu-DHPCl2200Cl  220
-SF-Cu2.0090Cu-DHPCW024ACu-DLPCl  2200Cl 220
TP1SW-Cu2.0076Cu-DLPCW023ACu-DLPCl  2000C1201
H96CuZn52.0220CuZn5CE500LCuZn5C21000C2100
H90CuZn102.0230CuZnlOCW501LCuZnl0C22000C2200
H85CuZn152.0240CuZnl5CW502LCuZn15C23000C2300
H80CuZn202.0250CuZn20CW503LCuZn20C24000C2400
H70CuZn302.0265CuZn30CW505LCuZn30C26000C2600
H68CuZn332.0280CuZn33CW506LCuZn35C26800C2680
H65CuZn362.0335CuZn36CW507LCuZn35C27000C2700
H63CuZn372.0321CuZn37CW508LCuZn37C27200C2720
HPb63-3CuZn36Pb1.52.0331CuZn35Pb1CW600NCuZn35Pb1C34000C3501
HPb63-3CuZn36Pb1.52.0331CuZn35Pb2CW60INCuZn34Pb2C34200-
H62CuZn402.0360CuZn40CW509NCuZn40C28000C3712
H60CuZn38Pb1.52.0371CuZn38Pb2CW608NCuZn37Pb2C35000-
HPb63-3CuZn36Pb32.0375CuZn36Pb3CW603NCuZn36Pb3C36000C3601
HPb59-lCuZn39Pb22.0380CuZn39Pb2CW6I2NCuZn38Pb2C37700C3771
HPb58-2.5CuZn39Pb32.0401CuZn39Pb3CW614NCuZn39Pb3C38500C3603
-CuZn40Pb22.0402CuZn40Pb2CW6I7NCuZn40Pb2C38000C3771
CuZn28Sn12.0470CuZn28Sn1AsCW706RCuZn28Sn1C68800C4430
-CuZn31Si12.0490CuZn31Si1CW708RCuZn31Si1C44300-
-CuZn20A122.0460CuZn20A12AsCW702RCuZn20A12C68700C6870
QSn4-0.3CuSn42.1016CuSn4CW450KCuSn4C51100C5111
-CuSn52.1018CuSn5CW451KCuSn5C51000C5102
QSn6.5-0.lCuSn62.1020CuSn6CW452KCuSn6C51900C5191
QSn8-0.3CuSn82.1030CuSn8CW453KCuSn8C52100C5210
BZn12-24CuNi12Zn242.0730CuNil2Zn24CW403JCuNil2Zn24C75700.
BZn 12-26CuNi18Zn272.0742CuNi18Zn27CW410JCuNil8Zn27C77000C7701
BZnl8-18CuNi18Zn202.0740CuNi18Zn20CW409JCuNil8Zn20C76400C7521
-CuNi10Fe1Mn2.0872CuNi10Fe1MnCW352HCuNilOFeIMnC70600C7060
CuNi30Mn1Fe2.8820CuNi30Mn1FcCW354HCuNBOMnlFeC71500C7150



Copper



BSBS ENDescription
C101CW004AElectrolytic Tough Pitch (ETP) is a commonly used grade of copper for electrical applications.
C103CW008AOxygen Free Copper is an oxygen free copper with a minimum copper content of 99.95%.
C106CW024APhosphorus De-oxidised Copper has the oxygen removed through the controlled addition of phosphorous, making it more easily weldable.
C109CW118CTellurium Copper (free cutting) has 0.5% tellurium which raises the machinability but has a limited effect on both ductility and conductivity.
C110CW009AOxygen Free (High Conductivity) Copper contains 99.99% copper with limited impurities when compared to other grades. This grade is the purest of the oxygen free coppers.
C111CW114CSulphur Copper (Free Machining) has a machinability rating of approximately 80% which is due (in part) to the addition of sulphur.
C101AG2CW011ASilver-Bearing Copper features the addition of copper to improve the resistance to softening. These grades also feature improved electrical conductivity and resistance to heat and corrosion.
C101AG3CW012A
C101AG4CW013A
CC102CW106CCopper Chrome Zirconium contains small amounts of zirconium as well as chromium which help to improve mechanical performance.



PRODUCT  DISPLAY

PACKAGEING

ABOUT US

Jiangsu Hailiang Dongfang

Jiangsu Hailiang Dongfang Import and Export Co., Ltd. is a professional supplier of Copper products. The main products include copper/Brass plates, copper/brass pipes,copper/brass coils, copper/brass bars, copper/brass wire,copper brass, hexagonal bars,bronze tube/rod and made-to-order shapes for customer specific applications. We can promise high quality with best price.

We have more than 20 years of copper sales experience. We can provide production organized in accordance with national standards, American standards, and German standards. And cooperates with major domestic steel mills. We have sufficient supply and regular inventory to handle import orders for customers who need special steel and special specifications. Our company provides warehousing, processing, distribution and other services. Therefore, we do our best in every step, whether it is input or output.

Our Copper products have gained a good reputation in many countries, like Chile, Canada, Peru, Mexico, the United States, Japan, France, the United Kingdom, Italy, Belgium, etc. We hope to cooperate with more countries, which will help us expand both of our markets and maintain stable cooperative relations.

Production equipment to ensure timely delivery of products.

Ensure the product with good quality,sufficient quantity and diversification.

Own professional quality management and process inspection team.

Have a professional customer service team to answer your doubts at any time.
